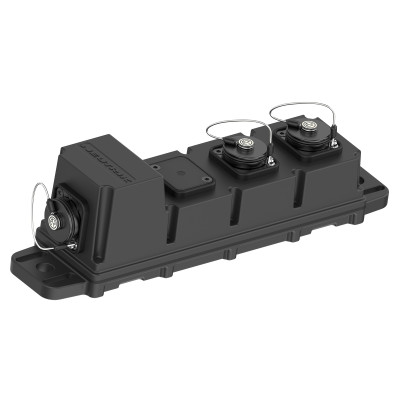

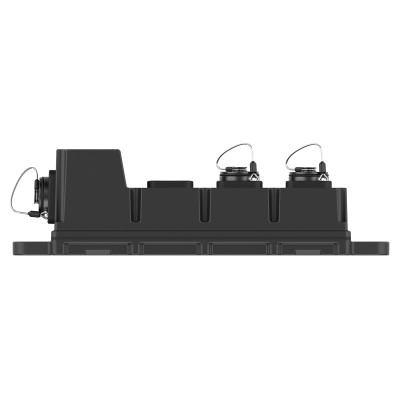

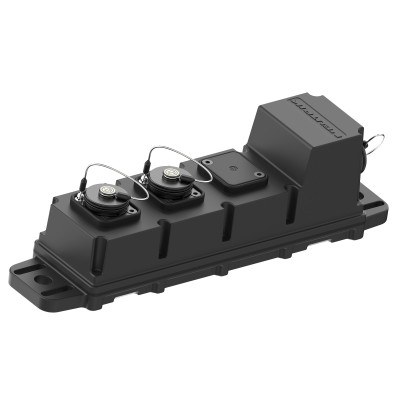

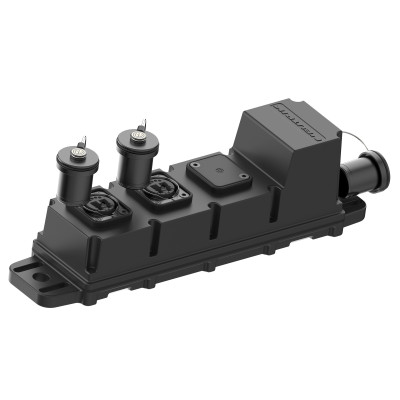

opticalBAR
A compact, rugged fiber breakout solution designed for professional applications where flexibility, reliability, and durability matter. With an IP65 rating when mated, the opticalBAR enables smart fiber distribution in the most demanding environments.
Fully compatible with the opticalCON® ADVANCED series, the opticalBAR is available in the following core variants:
| Product Code | From chassis | To chassis | Fibertype |

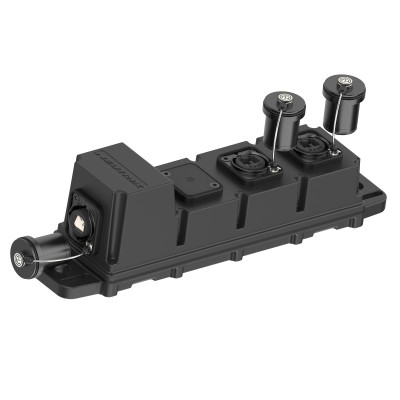

| NO4M-OC-B2NO2-A | 1x opticalCON® QUAD MM | 2x opticalCON® DUO MM | Multimode |
| NO4S-OCB2NO2-A | 1x opticalCON® QUAD SM[PC] | 2x opticalCON® DUO SM[PC] | Singlemode |
| NO4SA-OCB2NO2-A | 1x opticalCON® QUAD SM[APC] | 2x opticalCON® DUO SM[APC] | Singlemode |

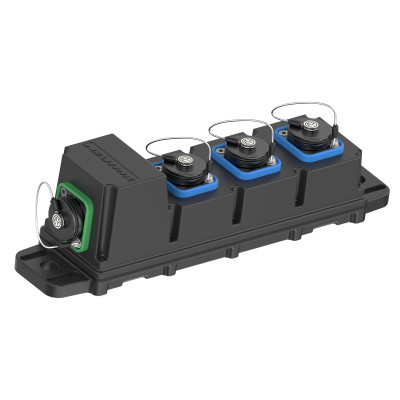

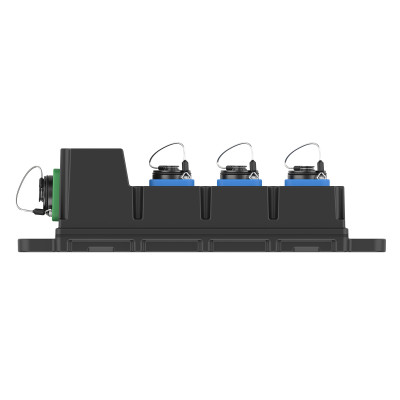

| NO12M-OCB3NO4-A | 1x opticalCON® MTP®12 MM | 3x opticalCON® QUAD MM | Multimode |

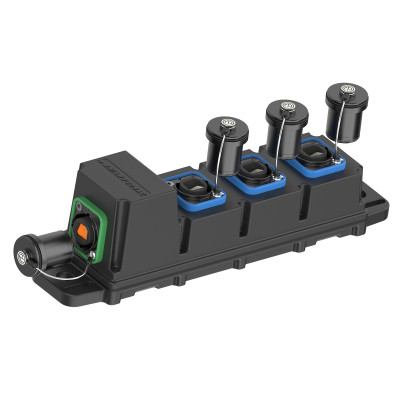

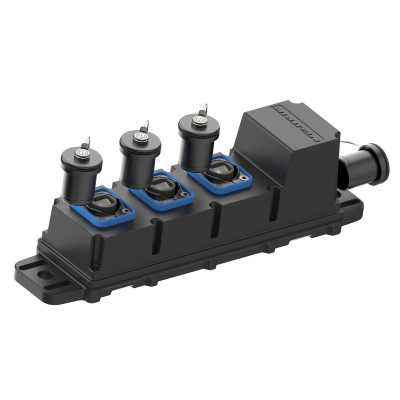

| NO12SA-OCB3NO4-A | 1x opticalCON® MTP®12 SM[APC] | 3x opticalCON® QUAD SM[PC] | Singlemode |
Features & Benefits
- Flexible mounting options: Mounting holes for screws, Velcro straps and pegs; Truss clips (available soon)
- Outdoor Ready: IP65 rated in mated conditions
- Full compatibility with our opticalCON® ADVANCED products
Downloads
Technical Information
| Product | |
|---|---|
| Title | opticalBAR |
| Connection Type | Breakout Adapter |
| Gender | female |
| Mechanical | |
|---|---|
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 1000 mating cycles |
| Locking device | Push-Pull |
| Environmental | |
|---|---|
| Temperature range | -25 °C to +70°C |
| Protection class | IP65 (in mated condition) |
| Optical | |
|---|---|
| Insertion loss | LC < 0.4 dB per connection MTP® < 0.9 dB per connection |
| Optical connector | LC or MTP® |
Accessories
FOCD-STC
opticalCON DUO 底座连接器 NO2-4FDW-*A 的维修工具
opticalCON MTP® 底座连接器 NO12FDW-A / NO24FDW-A 的维修工具
audio

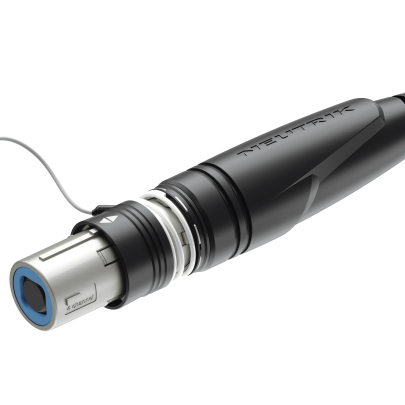

opticalCON QUAD
组装的结实耐用轻双通道场地光缆，聚芳基酰胺线带来出色的光缆保持力，黑色聚氨酯（PUR），同时提供多模和单模(PC或APC)，已通过军用认证。

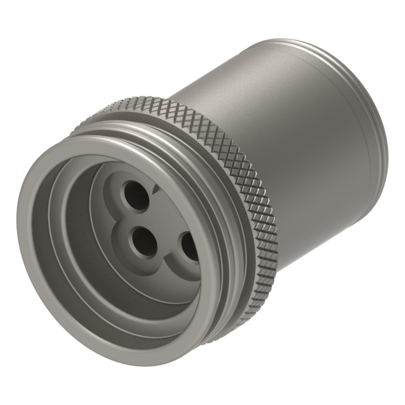

FOID-STQC
opticalCON DUO 底座连接器 NO4FDW-A 的维修工具
CAS-FOCD-ADV
光纤清洁工具箱

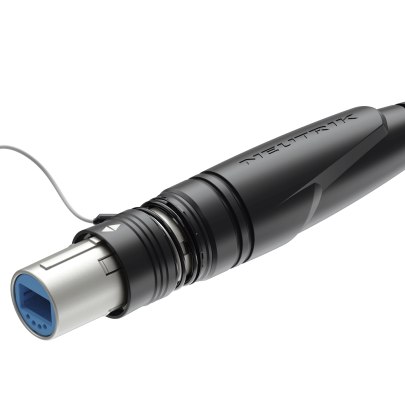

opticalCON DUO
组装的结实耐用轻双通道场地光缆，聚芳基酰胺线带来出色的光纤保持力，黑色聚氨酯（PUR），同时提供多模和单模(PC或APC)，已通过军用认证。

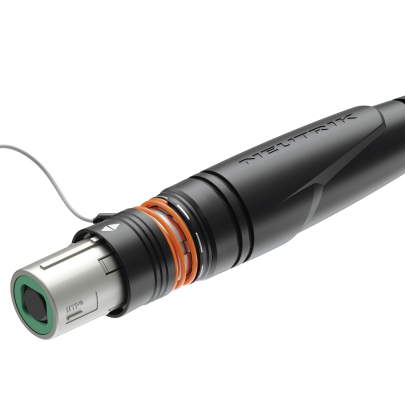

opticalCON MTP®
预组装的，结实耐用的轻质12通道移动场地光缆，聚芳基酰胺线带来出色的光缆保持力。黑色的聚氨酯外套，提供单模（APC）和多模（PC）。
Application
- Camera connections
- Audio networks
- DMX networks
- InterCom
