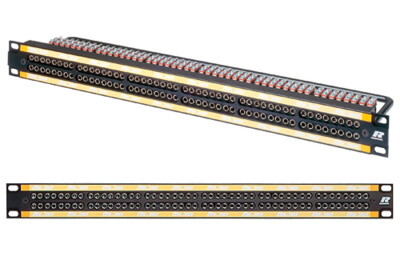

MA96-1O
*DISCONTINUED*
96路小型跳线板，镀黑前面板，12 x 8一组，特别坚固的插口符合客户标准
特征和性能
- 加固设计的跳线板，根据MIL-P-642/13适用于标准4.4 mm小型插口
- 装有96个压铸插口
- 由坚固的冲压铝制成，包含2个集成槽，用于识别带
- 96通道，由两行12 x 8立体声插口组成
Technical Information
| Product | |
|---|---|
| Title | MA96-1O |
| Connection Type | Patch Panel |
| Electrical | |
|---|---|
| Signal Type | AES/EBU Signals (digital) |
| Contact resistance | < 24 mΩ |
| Contact resistance | < 16 mΩ |
| Dielectric strength | > 0.5 kVdc |
| Frequencyrange | DC to > 50 MHz |
| Insulation resistance | > 1 GΩ @ 500 V dc |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Handles Phantom Power | Yes |
| Mechanical | |
|---|---|
| Insertion force | < 25 N |
| Withdrawal force | > 10 N |
| Lifetime | > 20000 mating cycles |
| Wiresize | |
| Locking device | Retention spring |
| Material | |
|---|---|
| Contacts | Pallatium plated (Switch contacts) |
| Shell | diecast alloy (Jacks) |
| Shell plating | Black front panel |
| Front panel | anodised Al |
| Lacing bar | powder coated steel |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
