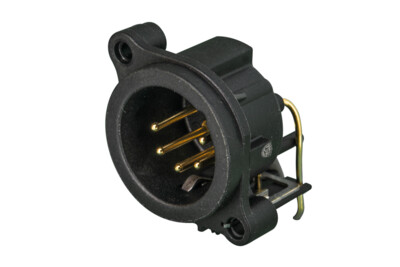

5芯公头XLR插座,接地方式:与外壳及前面板相连的独立接地触点,水平PCB安装面板,可选的颜色编码
高工艺性艺术化底座,圆形塑料外壳的PCB安装面板XLR连接器。涵盖最小尺寸和最高堆积密度的产品(中心距离23mm)。
Product | |
Title | NC5MAH |
Connection Type | XLR |
Gender | male |
Electrical | |
Capacitance between contacts | ≤ 7 pF |
Contact resistance | ≤ 6 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 3 A |
Rated voltage | < 50 V |
Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 |
Mechanical | |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | |
Wiring | Horizontal PCB mount |
Locking device | Latch lock |
Mounting direction | Rear mounting |
Chassis shape | A |
Mounting | A-Screw |
Material | |
Contacts | Brass (CuZn35Pb2) |
Shell | Polyamide (PA66) |
Environmental | |
Flammability | UL 94 V-0 |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
