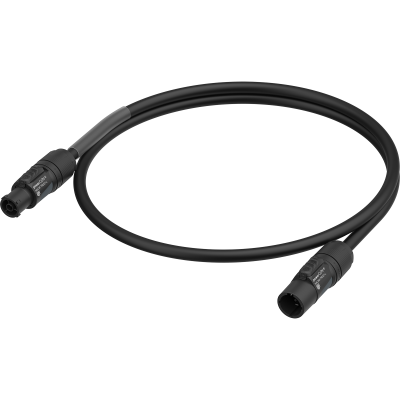

NKPH1-A1A1_Picture_01
neutrik-zh / 产品 / powerCORDS / 升级版 POWER CORDS / powerCON TRUE1 - 互联可装电源线

powerCON TRUE1 - 互联可装电源线

Download Data Sheet

NEUTRIK® 户外电缆配有 powerCON® TRUE1®  和高质量  H07RN线缆，是舞台和活动的理想选择。


符合所有相关版本的 IEC 60799 标准。

特征和性能
  • NKPH 电源线组件符合所有相关版本的 IEC 60799 标准
  • powerCON® TRUE1® TOP 电源连接器符合 IEC 60320-1 认证
  • 带遮断容量 (CBC) 的连接器
  • IP65 and IP67 with NEUTRIK® powerCON® TRUE1®
  • 欧洲制造商生产的高品质橡胶电缆
下载
Drawing NKPH-A2A1 (PDF)
pdf - 832.99 KB
Drawing NKPH-A2A1 (DXF)
dxf - 3.16 MB
NEUTRIK power cords premium series Broschure
pdf - 2.02 MB
BDA 686 V3 - Manual - Neutrik powerCON TRUE1 Cable - EN
pdf - 1.49 MB
BDA 676 V2 - CONTRIK Manual - CONTRIK powerCON TUE1 Kabel - 202502
pdf - 1.52 MB
CE Conformity declaration NKPH
pdf - 764.79 KB
EU Declaration of Conformity (PGD)
pdf - 370.15 KB
产品型号
Article nameDetailsOrder code
NKPH03-A2A1-M01001 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027564
NKPH03-A2A1-M0150 1.5 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1038157
NKPH03-A2A1-M02002 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027565
NKPH03-A2A1-M0300 3 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651038158
NKPH03-A2A1-M05005 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027566
NKPH03-A2A1-M100010 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027567
NKPH03-A2A1-M150015 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027568
NKPH03-A2A1-M200020 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027569
NKPH04-A2A1-M01001 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027570
NKPH04-A2A1-M0150 1.5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651038159
NKPH04-A2A1-M02002 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027571
NKPH04-A2A1-M0300 3 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651036431
NKPH04-A2A1-M05005 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027572
NKPH04-A2A1-M100010 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027573
NKPH04-A2A1-M150015 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027574
NKPH04-A2A1-M200020 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027575

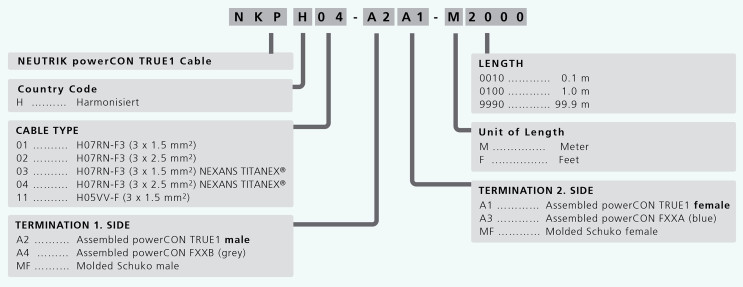

电缆线部件详解

NKPHx-A2A1 - Detail

powerCON TRUE1 - Interconnection cordset rewirable

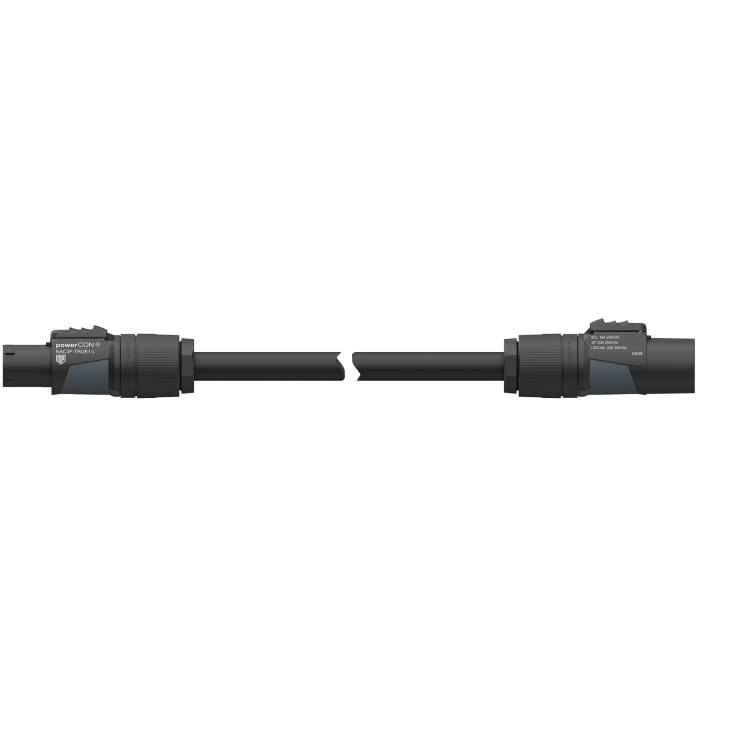

powerCON_NAC3FX-W-TOP-L-NAC3MX-W-TOP-L-cable cut_montage side_RGB
